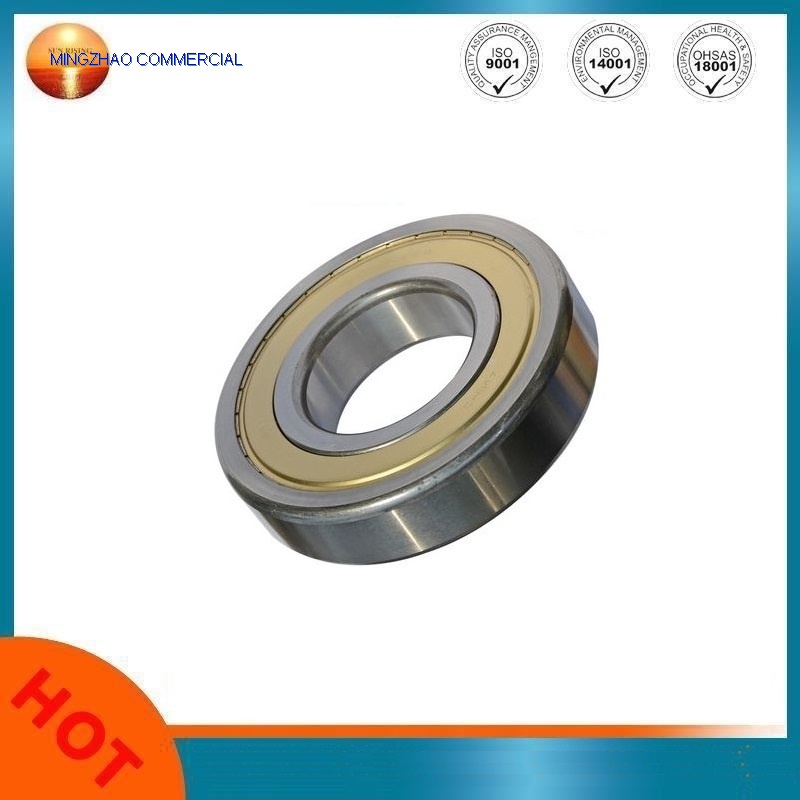

Product name : High Quality Deep Groove Ball Bearing

Item : 2025417162035

Enlarge Image

Back

←[Previous Product]

Details:

Deep Groove Ball Bearing is a common type of bearings and it is used in several industries from heavy machinery to high precision apparatus. This type of bearings consists of four elements that include inner ring, outer ring, cage and balls. They can be available with metal shields, rubber seals (contact/non-contact type), snap-ring grooves with snap-rings, and a variety of types.
These Bearings are designed for radial, axial, and also composite load applications with the following feature:
·Uni or bi-directional load carrying capability
·Very high-speed rotation
·Very good running accuracy
·Low noise and low friction torque

Deep groove ball bearings specification:

Type	ID (mm)	OD(mm)	Width (mm)	Cr (kN)	Cor (kN)
604	4	12	4	0.76	0.32
605	5	14	5	0.89	0.33
606	6	17	6	2.63	0.92
607	7	19	6	2.76	1.11
608	8	22	7	3.47	1.44
609	9	24	7	3.47	1.42
6001	12	28	8	5.10	2.38
6002	15	32	9	5.58	2.85
6004	20	42	12	9.38	5.02
6006	30	55	13	13.2	8.25
6007	35	62	14	15.9	10.3
6010	50	80	16	22.0	16.2
6205	25	52	15	14.0	7.85
6206	30	62	16	19.5	11.3
6207	35	72	17	25.7	15.4
6305	25	62	17	20.6	11.3
6306	30	72	19	26.7	15.0

We supply deep groove ball bearings,angular contact ball bearings,bearing cages and other products.

If you need these products,please contact us freely,you will be satisfied with our better & professional service and we will be your best supplier in China.
